The Stand-Alone Surgical Cart has been added to the Castellini range to give dentists the potential to practice implantology and endodontics at the highest level, without being bound to the purchase of a chair. As an option, this solution can be purchased individually in a plug & play version. Where multiple connection boxes are located in different rooms within the surgery, all users need to do is connect the Cart in the room where they’re working.
A Cart to free up your potential.
The Stand-Alone Surgical Cart can be configured with integrated instruments, programmes and functions, ensuring endodontic and implantology tasks are performed smoothly. What’s more, the version that quick-couples to a floor-mounted connections box via a special socket lets den- tists move from one surgery room to another without needing more than one Cart. With this so- lution, room-to-room transfers require no work on the part of a technician and initial investment and subsequent maintenance costs are lower. If you have a patient chair for orthodontic work without a dentist’s module, the Cart opens up the possibility of performing specialist treatment. Thanks to NFC technology, dentists can connect to the Cart where their interface preferences and integrated instrument operating parameters were previously saved.

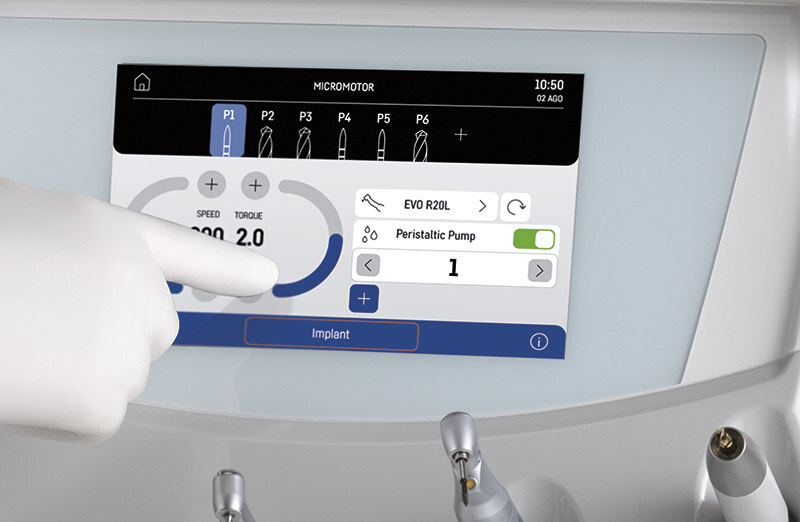

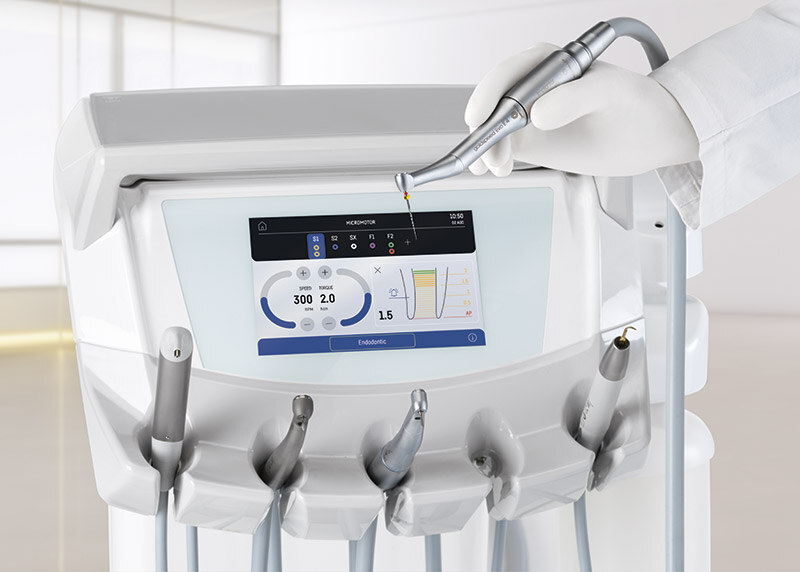

Two Full Touch control panels are available: Clinic and Multimedia. Both have a 7” capacitive multitouch screen and provide plenty of scope for personalisation of programmes, instruments and displayed data. With the Multimedia version (optional), users can view videos, photos and X-ray images loaded via the USB port. The software can be configured for traditional endodontics or reciprocating-mode instruments. For implant procedures, a peristaltic pump and torque curves are available.

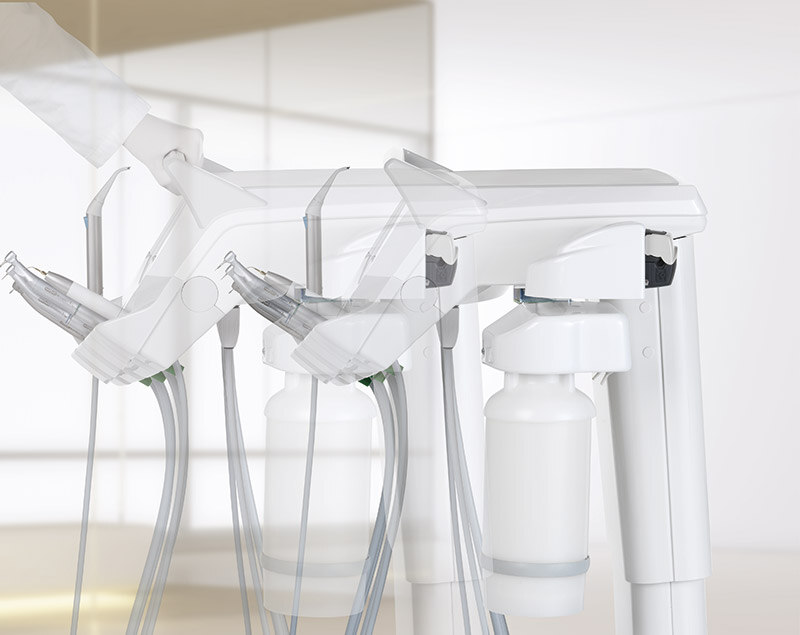

To help streamline workflows, instrument housings have been designed to minimise the risk of accidentally dropping the instrument during treatment. Just tap the bracelet on the NFC symbol on the side of the dentist’s module to connect to the Cart.

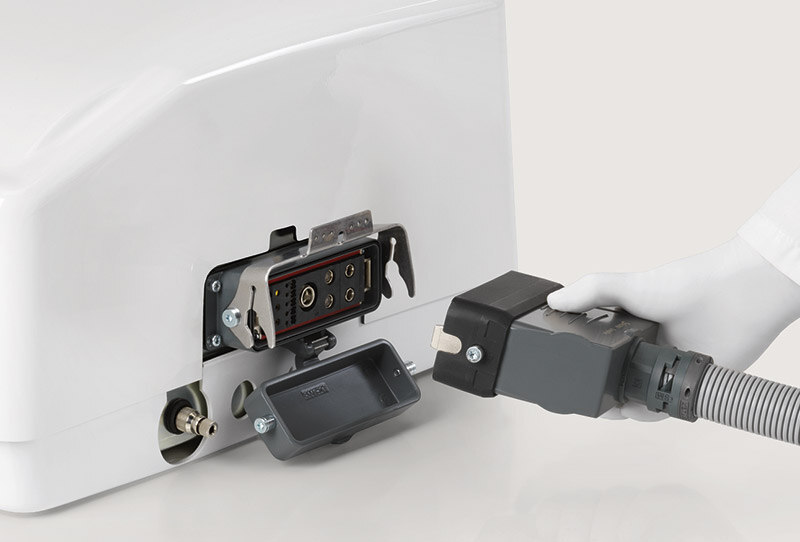

When the Cart needs to be moved from one room to another, the plug&play connector can be detached quickly. Designed to be hard-wearing, the plug provides a secure connection and the socket is protected against dust and other risks by a flap.
The standard version of the Stand-Alone Surgical Cart has its own connections box. The connector has extensions measuring 3, 4, 5 and 6 metres in length, allowing optimal flexibility in each room. This set-up provides plenty of operating space and lets dentists carry out specialist clinical treatment.
Makes it easier to move equipment, frees up more space and minimises hindrance. What’s more, the foot control has an array of key functions (e.g. instrument and peristaltic pump control) and reduces manual contact with the control panel.

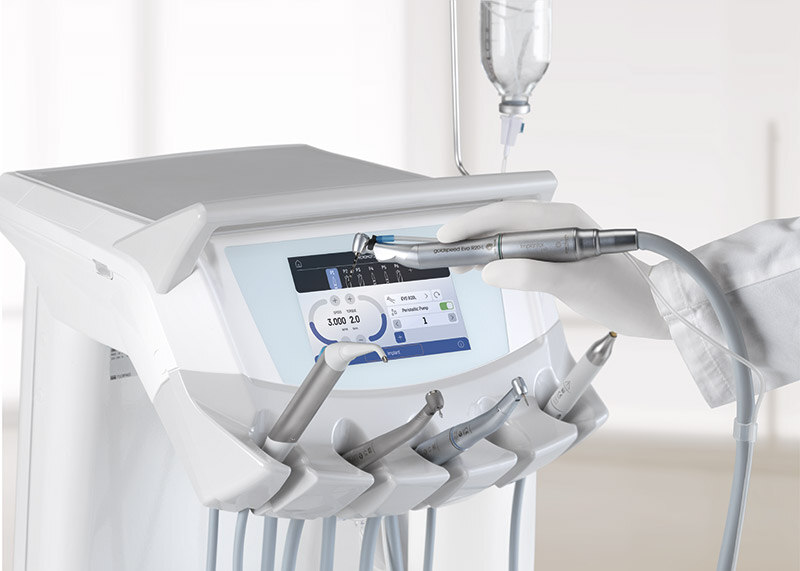

The Cart features devices and software that allow smooth performance of implant surgery. For example, it includes a powerful induction micromotor, a peristaltic pump and a cutting-edge control panel that lets users quickly customise and save speed, torque and irrigation flow parameters. Moreover, further implantology features include the ability to record torque curves. Data can be exported in three different formats so it can be used as a support for subsequent analysis, for quick reference purposes or simply as documentation to be filed in the patient’s records.
The display shows only the information relevant to the clinical needs of the moment: all working parameters can be modified with ease at the touch of a finger, thereby leaving the dentist free to focus on the operation and the patient.
The dentist can also use an integrated function that records torque curves during surgery. Moreover, following treatment documentation is produced in an exportable format to keep a record of the delivered torque and implant tightening torque.
The new, now-quieter Implantor LED micromotor features tubes that improve handling. Moreover it’s available with the optional FIT (Fluorescence-aided Identification Technique) function that lets users detect the presence of composite materials with a special LED light. This technology makes tasks in the conservative, orthodontic and aesthetic fields more precise. LED FLUO Implantor doesn’t just highlight fillings in composite material, differentiating it from the natural structure of the tooth: it also highlights brackets on fixed braces and the invisible attachments used to secure transparent corrective braces.
Featuring a streamlined and easy-to-handle design, the syringe provides six functions. The handle and tip are autoclavable.
Specifically designed for oral surgery, implantology and osteotomy, this handpiece is available with a wide range of accessories for any treatment requirements. Interchangeable with Piezolight 6 and compatible with Piezosteril 6, subject to tubing replacement, the Surgison 2 handpiece is automatically detected and piloted by the Cart at all times. Completely autoclavable, it provides optional irrigation with sterile fluids for complete asepsis of the operating area.
Available with LED lighting and fully autoclavable, ultrasound handpieces are suitable for prophylaxis, endodontics and periodontal procedures. Ultrasound vibrations are linear and controlled. There are no parasitic lateral vibrations. Constant control and self-adjustment of frequency according to load and the condition of the tip. Irrigation flow can be fine-adjusted via a special dial.
To carry out fast, intensive flushing between patients, or immediately after switch-on in the morning, the Time Flushing function performs a complete water change by way of a timed feed fluid flow.
The stand-alone supply system is equipped with a 1.8 litre capacity pressurised tank, easily accessible from outside to facilitate filling or replacement.
Removable and easily disinfectable, the tubes make cleaning and replacement operations easier and faster.
Disposable film for the protection of assistant’s keypad and Full Touch control panel.
Easily removable and autoclavable, the mat is made of silicone for added safety.
